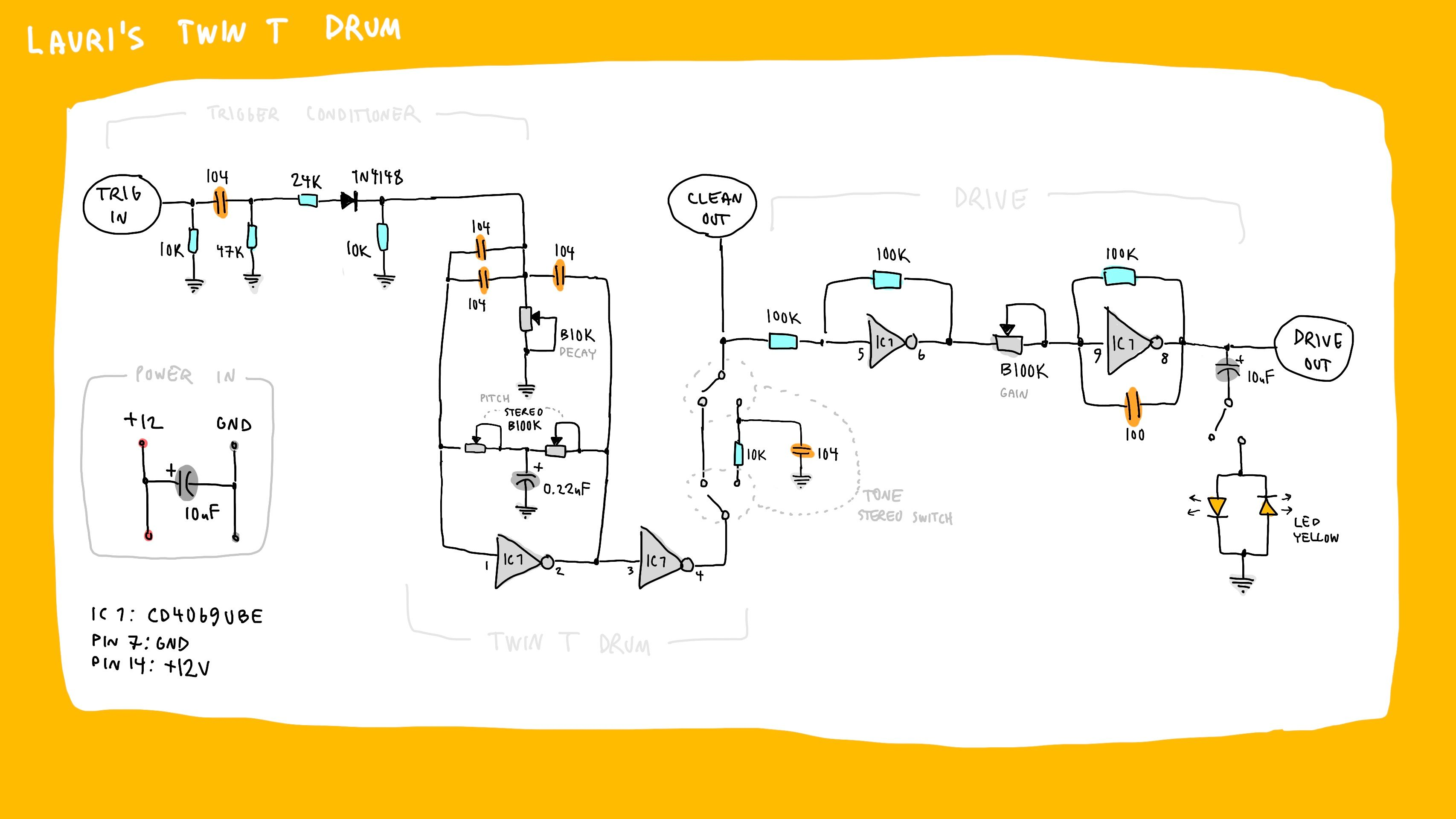

kick drum module

• R14 can be 10K for smoother gain - actually try a C pot
• c3, c5 - 100n + 47n - just keep it 100n ✅ 2024-01-06
• Footprint for C3 R7 U1 Power are confusing
• Diode footprints are too small
• Remove d3 and d4 ✅ 2024-01-06
• additional features
  • CV for freq
  • CV for distortion
  • CV for Decay
  • Manual Trigger button
  • Sidechain V
• add diodes for softer clipping
• A pots would help especially for distortion
  • felt like the top 70% was already at max saturation
• Decay felt ok with C pot
• Tone is backwards
• Add LED for trig
• increase signal out - boost 3k to 20k ✅ 2024-01-06

https://www.reddit.com/r/synthdiy/comments/k9nglf/a_simple_twint_kick_drum_module/
